Robot tube feeding system

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Cosmetics, Deodorants, Hair Care, Men's Shaving, Skin & Sun Care, Liquid Soaps, Toothpaste, Oils & Fats, Other Food, Other Chemicals

Description

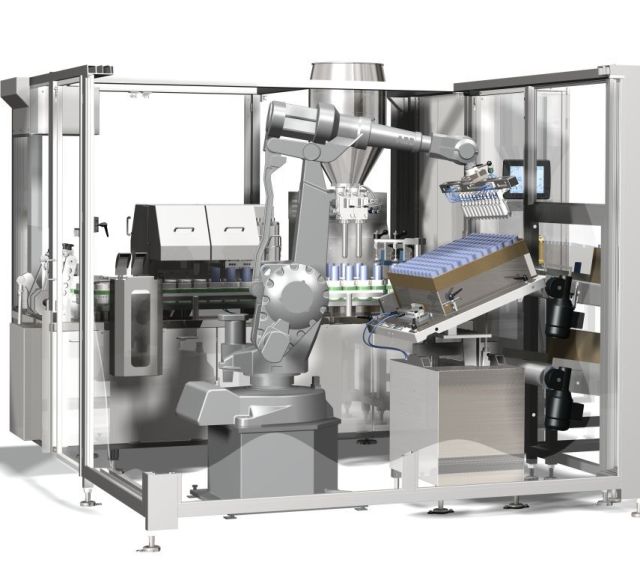

​Norden’s Robot Tube loader offers and automated system for feeding the tube filling machine with empty tubes. The robot fingers pick up empty tubes and places them in the tube holders of the machine. Norden RTL will offer a significant increase to your efficiency and output of tubes. In addition to this the ergonomics of operating the machinery is improved with this system.

Detailed Info

Footprint
Machine depth (mm)2100
Machine height (mm)2100
Machine length (mm)4500
Machine weight (kg)500
Product range
Max filling volume (ml)300
Min filling volume (ml)1
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Performance
Operating modeIntermittent
Size changeover2 min
More Information
Other infoRobot tube feeding system. Sizes 6, 12 and 20 kg for loading tube diameters 12.5 - 65 mm.
Packing range
Max pack diameter (mm)60
Min pack diameter (mm)10
Packaging range
Max pack length (mm)250
Min pack length (mm)80
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
Value proposition
Value propositionScalability
