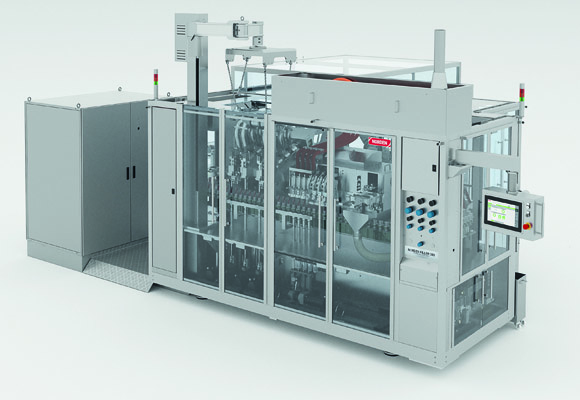

NF 300

Tube filling machine for plastic, laminate and aluminum tubes (300 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Food, Dairy, Personal Care, Chemicals, Pharma & Healthcare
  • SEGMENT: Oils & Fats, Other Food, Sauces & Condiments, Spreads, Cheese, Cosmetics, Men's Shaving, Other Chemicals, Toothpaste, Skin & Sun Care, OTC, Other Pharma & Healthcare, Hair Care

Detailed Info

Machine depth (mm)4050
Machine height (mm)2500
Machine length (mm)6350
Machine weight (kg)9500
Regulatory requirements
Environment Regulations640/2009/E
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 10218-2, EN ISO 11161, EN ISO 13732-1, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 1005-1 -2 -3 -4, EN 12100, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2006/42/EC, 2014/30/UE, 2014/35/UE
Product range
Max filling volume (ml)200
Min filling volume (ml)1
Operating modeIntermittent
More Information
Other infoNF 300 is handling tube diametres of Ø16 mm up to Ø40mm with excellent results. For oval tubes the max diameter is 44 mm for NF300. NF 300 has free stations for additional equipment, such as Vision Systems, Laser coding etcetera.
Packing range
Max pack diameter (mm)40
Min pack diameter (mm)16
Packaging range
Max pack length (mm)230
Min pack length (mm)80
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
Value proposition
Value propositionBreakthrough innovation
