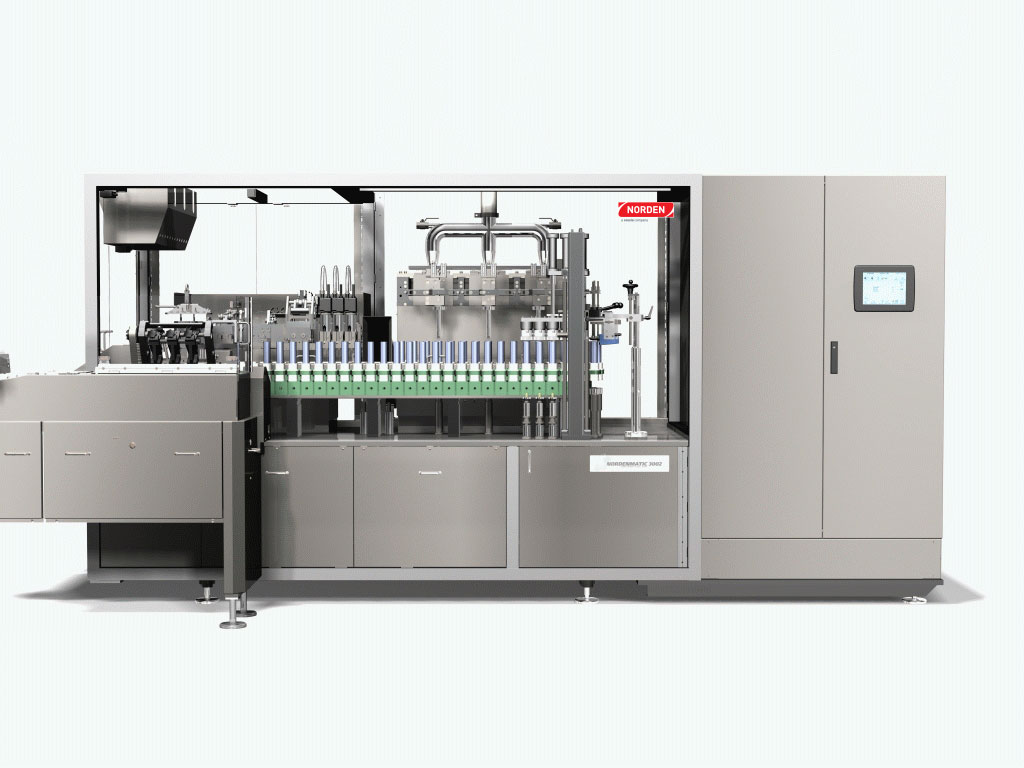

NM 3002

Tube filling machine for plastic, laminate and aluminum tubes (300 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Spreads, Other Chemicals


​The NM3002 machine is designed so as to provide maximum access for easy line clearance, cleaning, changeover  and maintenance. With Norden´s unique, enclosed tunnel concept for tube transfer between clean or sterile rooms and packing rooms, the NM 3002 becomes a compact and efficient option for the pharmaceutical industry.Closing stations for aluminium tubes or sealing units for plastic and laminate tubes can be fitted or a combined sealing beam incorporating both types of tube sealing providing maximum flexibility.

Detailed Info

Machine depth (mm)3350
Machine height (mm)2220
Machine length (mm)5200
Machine weight (kg)6500
Product range
Max filling volume (ml)200
Min filling volume (ml)1
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Operating modeIntermittent
More Information
Other infoTube diameter 10-38 mm. Filling volume 1-200ml. HA- Sealing. Metal folding or combination.
Packing range
Max pack diameter (mm)38
Min pack diameter (mm)10
Packaging range
Max pack length (mm)200
Min pack length (mm)50
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
Value proposition
Value propositionPerformance
