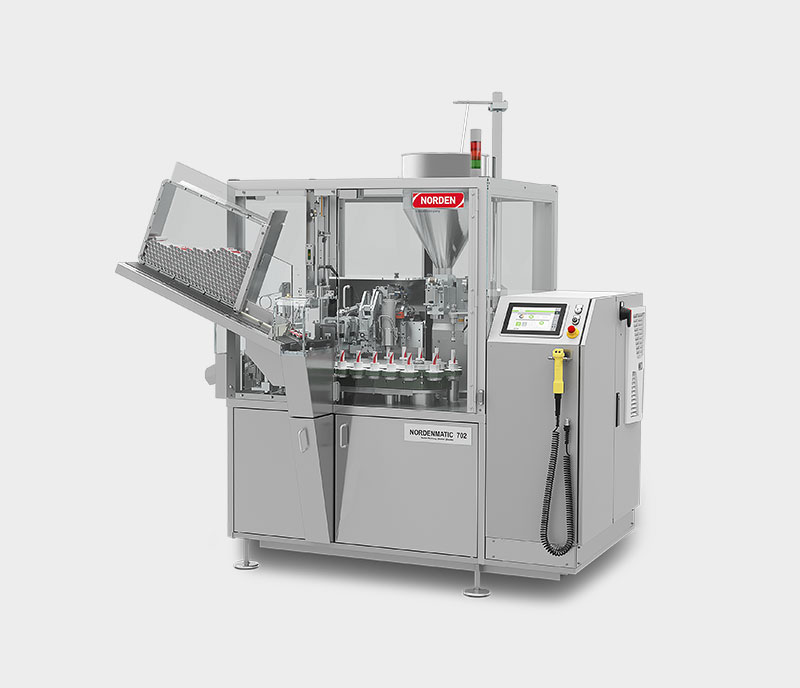

NM 702

Tube filling machine for plastic, laminate and aluminum tubes (80 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Toothpaste, Skin & Sun Care, Sauces & Condiments, Spreads, Other Chemicals

Description

​​There’s a reason the Nordenmatic 702 is the top selling tube filling machine on the market: it’s designed to deliver. Building on Norden’s well-proven oval tube transport system, with production outputs of up to 80 tubes per minute. You get maximum productivity with the highest possible packaging quality standards, at maximum operational efficiencies. The NM702 can be fitted with a number of infeed systems, depending on your needs.

Detailed Info

Footprint
Machine depth (mm)1360
Machine height (mm)2020
Machine length (mm)2500
Machine weight (kg)2000
Product range
Max filling volume (ml)300
Min filling volume (ml)1
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Performance
Operating modeIntermittent
More Information
Other infoHandle 10-60 mm tube sizes. Plastic, laminate or aluminium. Clockwise or Counterclockwise.
Packing range
Max pack diameter (mm)50
Min pack diameter (mm)10
Packaging range
Max pack length (mm)250
Min pack length (mm)50
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
Value proposition
Value propositionFlexibility
