NF 500

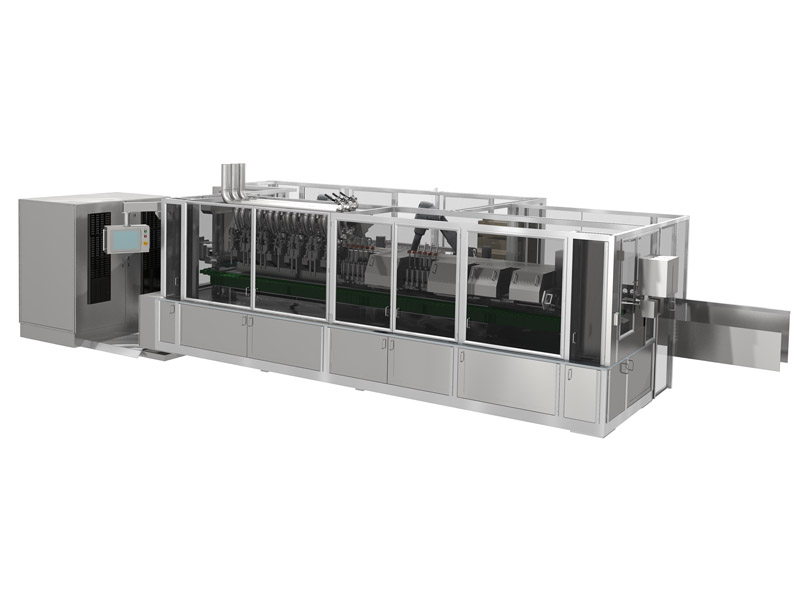

Tube filling machine for plastic, laminate and aluminum tubes (500 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Food, Dairy, Personal Care, Chemicals, Pet Care, Pharma & Healthcare
  • SEGMENT: Oils & Fats, Other Food, Sauces & Condiments, Spreads, Cheese, Cosmetics, Men's Shaving, Other Chemicals, Toothpaste, Skin & Sun Care, Other Personal Care, Other Pet Care, OTC, Other Pharma & Healthcare, Hair Care

Detailed Info

Footprint
Machine depth (mm)4100
Machine height (mm)2650
Machine length (mm)5600
Machine weight (kg)10000
Product range
Max filling volume (ml)200
Min filling volume (ml)1
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 10218-2, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 12100, EN 349, EN 415-4, EN 547-1 -2 -3, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2006/42/EC, 2009/105/EC, 2014/30/UE, 2014/35/UE, 94/9/EC, 97/23/EC
Performance
Operating modeIntermittent
More Information
Other infoFilling & sealing tube dia 16-40 mm. Tube lengths 80-230 mm up to 500 tpm. 1, 2 or 3 colors.
Packing range
Max pack diameter (mm)40
Min pack diameter (mm)16
Packaging range
Max pack length (mm)230
Min pack length (mm)80
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
Value proposition
Value propositionBreakthrough innovation
Attached Files
LAYOUT_2696.pdfDOWNLOAD
OPER_CYCLE_2696.pdfDOWNLOAD
