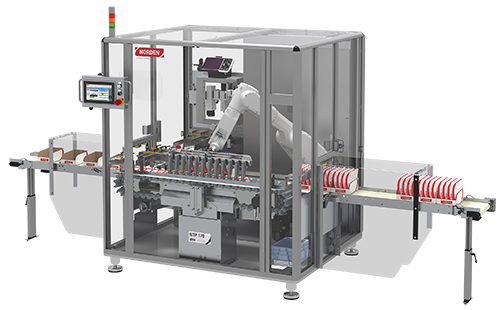

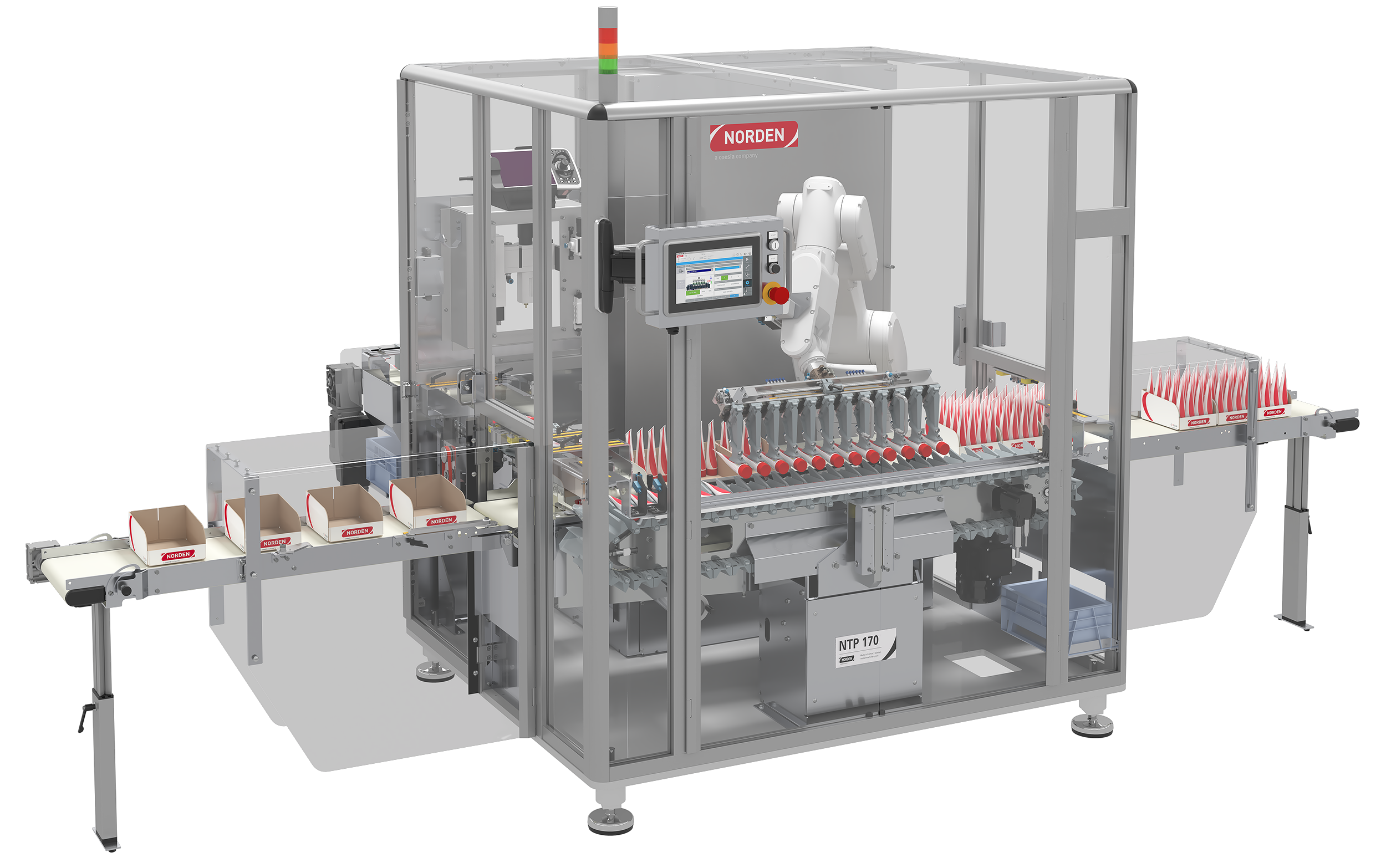

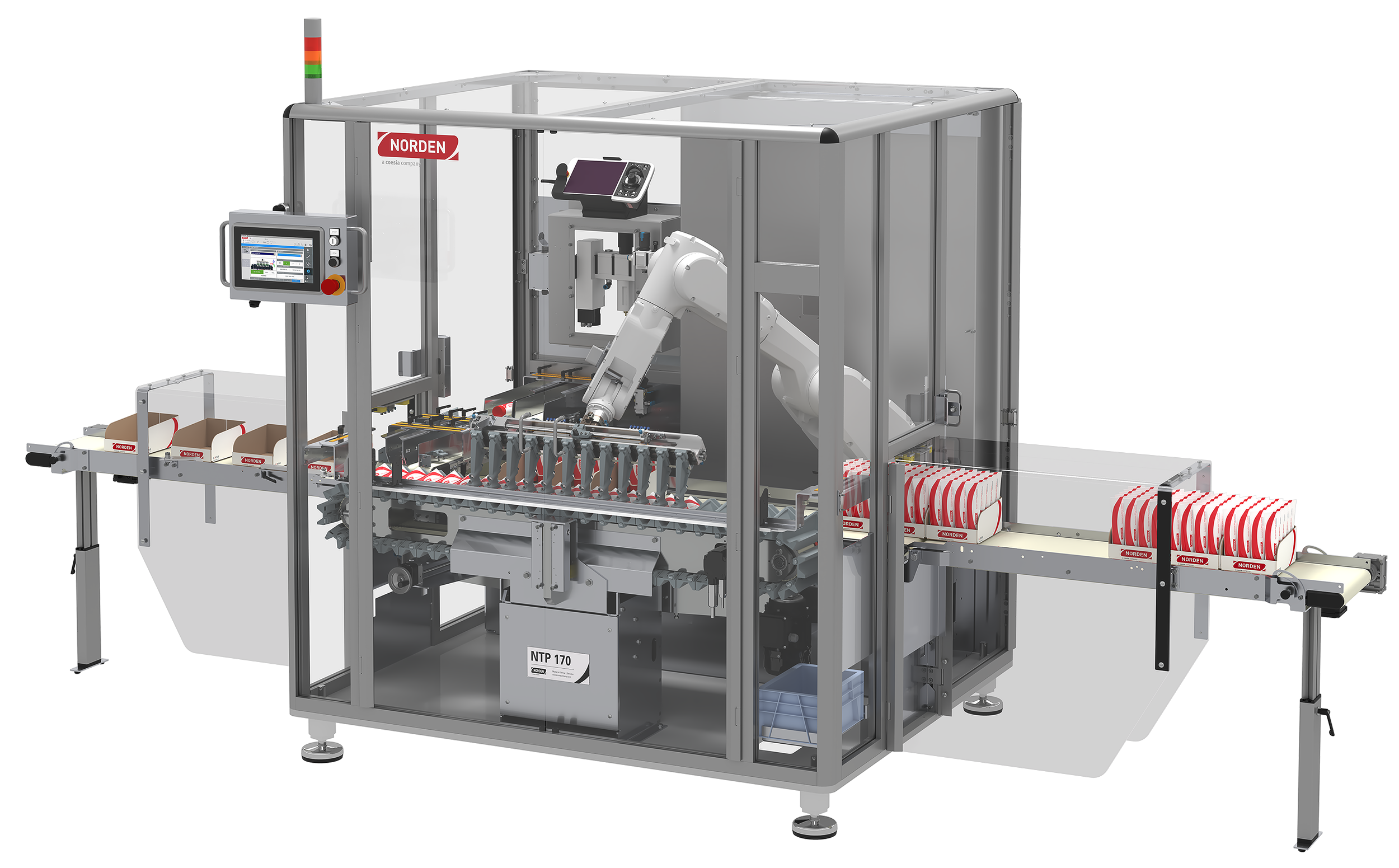

NTP 170

Tray & case packing for up to 170 tubes/min

Basic Info

TECHNOLOGY: Tray & Sleeve Packing
INDUSTRY: Food, Dairy, Personal Care, Home Care, Pharma & Healthcare
SEGMENT: Bars, Other Food, Spreads, Other Dairy, Cosmetics, Air Care, Other Home Care, Toothpaste, Other Oral Care, Skin & Sun Care, OTC, Other Pharma & Healthcare

After Sales service

Description

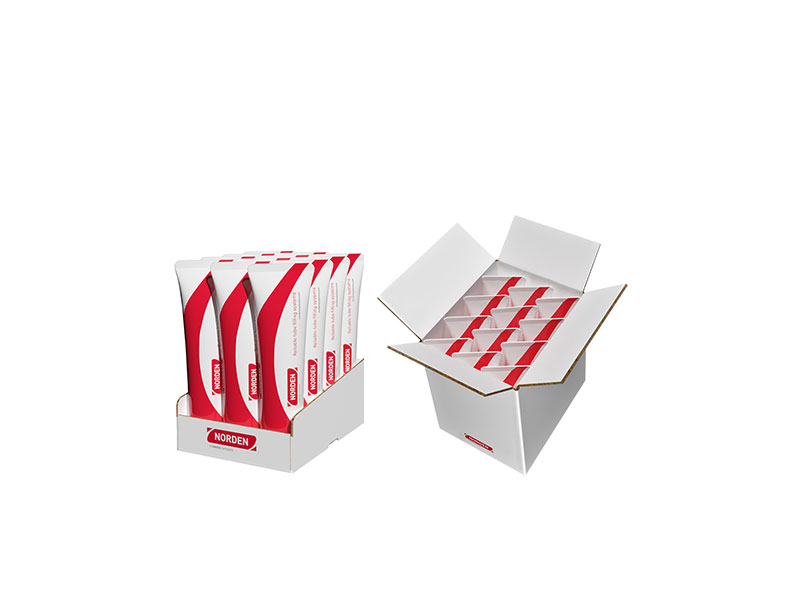

The NTP 170 is built for versatility. It packs a wide range of tray and case formats, including tubes standing up or lying down, trays with plastic inserts, and standard shipping cases. The flexible NTP 170 will fit perfectly together with tube fillers in the 85 to 170 tubes per minute segment. Compatible with the Norden NM902 or NM1702, but also with tube fillers from other brands. Small footprint with big performance. Fast and easy changeovers – with few format parts.

Detailed Info

Footprint: Machine depth (mm)2100; Machine height (mm)1965; Machine length (mm)4300; Machine weight (kg)1800

Performance: Operating modeIntermittent; Product changeover5 minutes; Size changeover5 minutes

More Information: Other infoThe NTP 170 delivers efficient tray and case packing at up to 170 tubes per minute, all in a compact footprint. Built on Norden¿s trusted tray and case packing technology, it brings high-speed performance to medium sized production lines. Designed for easy automation, the NTP 170 requires no robotics expertise and integrates seamlessly with Norden NM 902, NM 1702, NM 1703 and most other tube fillers. All it needs is a cap-first discharge and basic signal exchange. Simple to install. Easy to maintain. Compact footprint

Regulatory requirements: Other RegulationsGMP / GAMP5

Packaging range: Max pack height (mm)280; Min pack height (mm)10; Max pack length (mm)360; Min pack length (mm)100; Max pack width (mm)250; Min pack width (mm)100
