NTP

Tray packer for tubes

Basic Info

  • TECHNOLOGY: Tray & Sleeve Packing
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Other Food, Sauces & Condiments, Spreads, Other Chemicals

Description

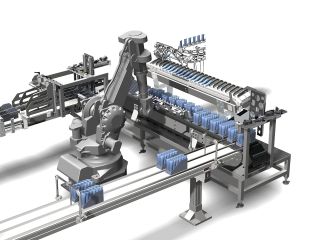

​​​Compact and versatile tube packing solutions:Norden Tray Pack System (NTP) provides the possibility of packing filled tubes in a vertical or horizontal position in all different types of trays available on the market, at a speed of up to 500 tubes/min. Norden Tray Pack-lines includes options for: Tubes with a stand-up cap, Trays with plastic inserts, Shipper boxes/American boxes.

Detailed Info

Footprint
Machine depth (mm)5030
Machine height (mm)2220
Machine length (mm)8340
Machine weight (kg)5000
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Performance
Operating modeIntermittent
More Information

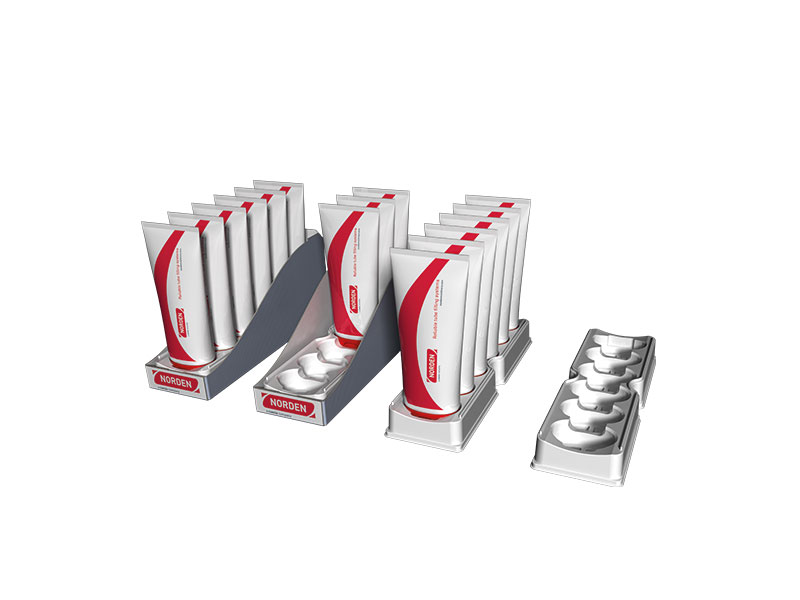

Other infoLay down and stand-up cap tubes in paper or plastic trays.
Packaging range
Max pack height (mm)50
Min pack height (mm)20
Max pack length (mm)300
Min pack length (mm)120
Max pack width (mm)180
Min pack width (mm)50
Packaging features
Packaging closingLidding
Packaging materialCardboard
Packaging TypePlastic in paperboard
Product features
Product orientationStanding
Value proposition
Value propositionPerformance
