NM 1702

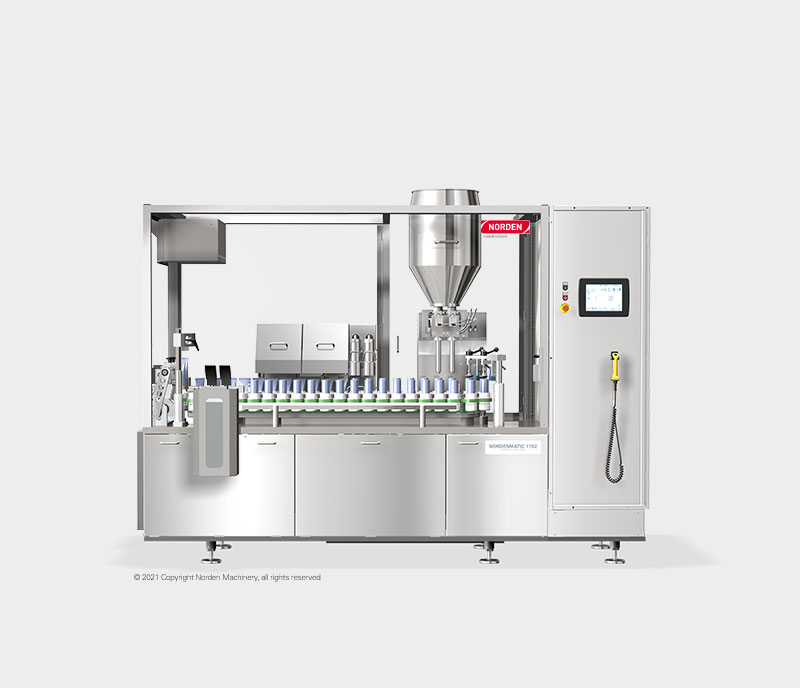

Tube filling machine for plastic, laminate and aluminum tubes (170 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Food, Personal Care, Home Care, Chemicals, Pharma & Healthcare
  • SEGMENT: Oils & Fats, Spreads, Cosmetics, Deodorants, Men's Shaving, Other Home Care, Other Chemicals, Liquid Soaps, Toothpaste, Skin & Sun Care, OTC, Hair Care
CONTACT US
AFTER SALES SERVICE

Description

​A tube filling machine designed with clean lines to facilitate easy line clearance, cleaning, changeover and maintenance. This machine guarantees high performance and long lifetime through the attention to details and the sturdy and high quality of materials. The NM 1702 may be equipped with either a Robotic Tube Loader (RTL) or Hinged Cassettes.


Detailed Info

SHOW MORE
Footprint
Machine depth (mm)3330
Machine height (mm)2515
Machine length (mm)3400
Machine weight (kg)4800
Product range
Max filling volume (ml)300
Min filling volume (ml)1
Performance
Operating modeIntermittent
More Information
Other infoFilling volume 1-300 ml. Plastic, laminate, and metal tubes. Tube diameters: 10-50 mm.
Packing range
Max pack diameter (mm)50
Min pack diameter (mm)10
Packaging range
Max pack length (mm)250
Min pack length (mm)50
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
