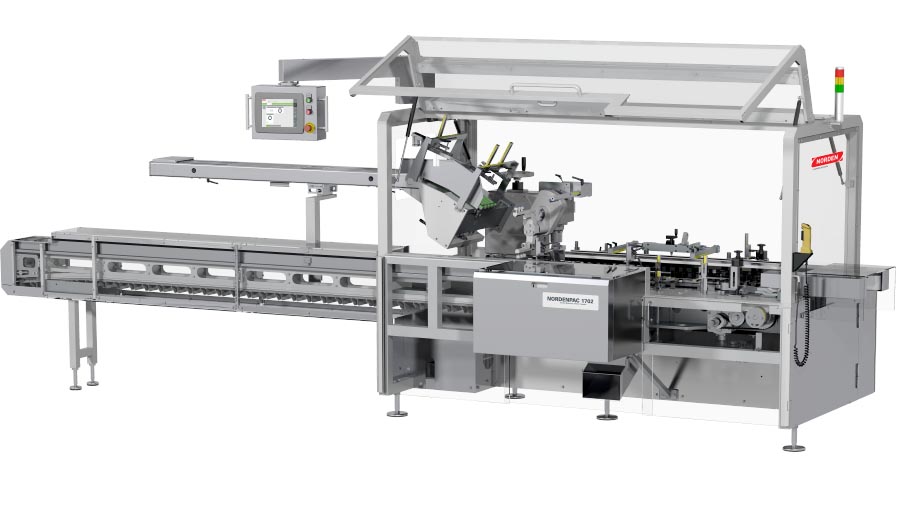

NP 1702

Cartoning machine for tube applications up to 200 ppm

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Other Food, Spreads, Other Chemicals


​​Controlled with a few clicks! Choose your desired speed of up to either 140 or 200 cartons per minute.  The performance is carefully monitored with Norden EasyWare. This state-of-the-art software offers possibilities to integrate with other units, or options such as adding an Audit Trail or CFR21-part11. A leaflet unit may be integrated. Different industries have specific requirements and the NP1702 is designed to meet those demands, no matter what they are.

Detailed Info

Machine depth (mm)1840
Machine height (mm)1750
Machine length (mm)4900
Machine weight (kg)2500
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Other technical features
Insertion modeEnd Load/Side Load
Operating modeContinuous
Product changeoverYes
More Information
Other infoCarton feeding 140-200 cartons per minute. Accessibility from two sides, rapid change.
Packaging range
Max pack height (mm)72
Min pack height (mm)15
Max pack length (mm)210
Min pack length (mm)70
Max pack width (mm)72
Min pack width (mm)20
Packaging features
Packaging closingTuck
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionPerformance
