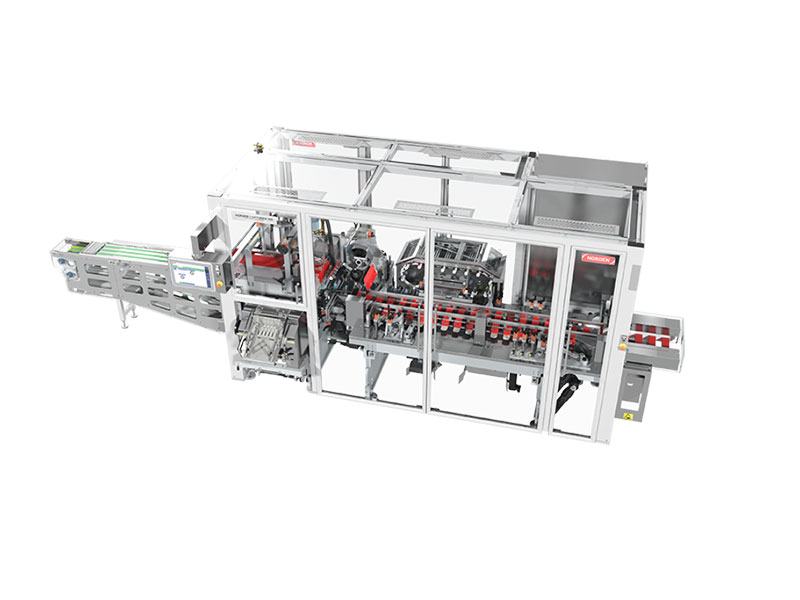

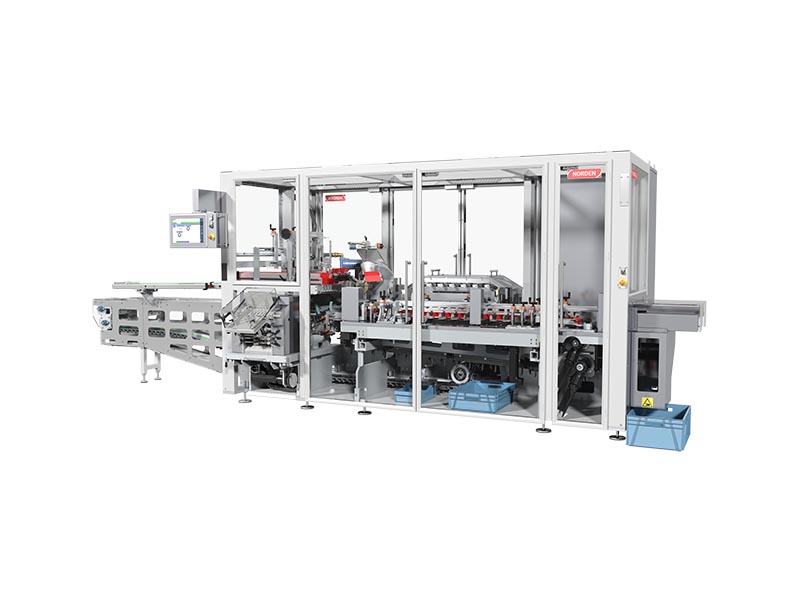

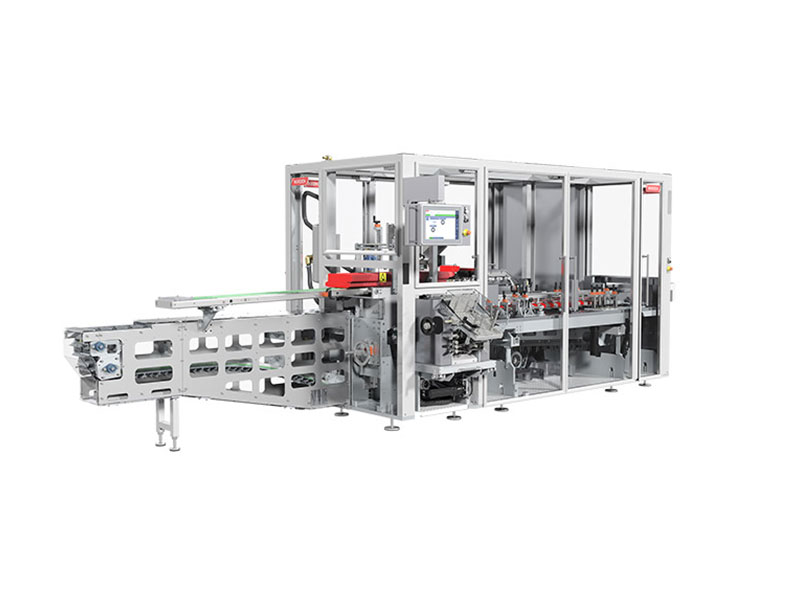

NC 300

Cartoning machine for up to 300 pc/min

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Other Food, Spreads, Other Chemicals

Description

The NC 300 is designed to deliver, just like all Norden machines. Producing at a speed of up to 300 pc / min and storing up to 50 pre-programmed format recipes that are just a click away. Ergonomic and automatized “press button” changeover options for the best user experience. Norden is offering several options for closing the carton. Tuck in
flaps in straight or reverse configuration.

Detailed Info

Footprint
Machine depth (mm)3300
Machine height (mm)2100
Machine length (mm)6000
Machine weight (kg)4000
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Other technical features
Insertion modeEnd load/Side load
Performance
Operating modeContinuous
Product changeoverYes
More Information
Other infoFlexibility, efficiency and simplicity.
Packaging range
Max pack height (mm)55
Min pack height (mm)15
Max pack length (mm)240
Min pack length (mm)70
Max pack width (mm)90
Min pack width (mm)20
Packaging features
Packaging closingTuck
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionFlexibility
Attached Files
LAYOUT_2081.pdfDOWNLOAD
OPER_CYCLE_2081.pdfDOWNLOAD
