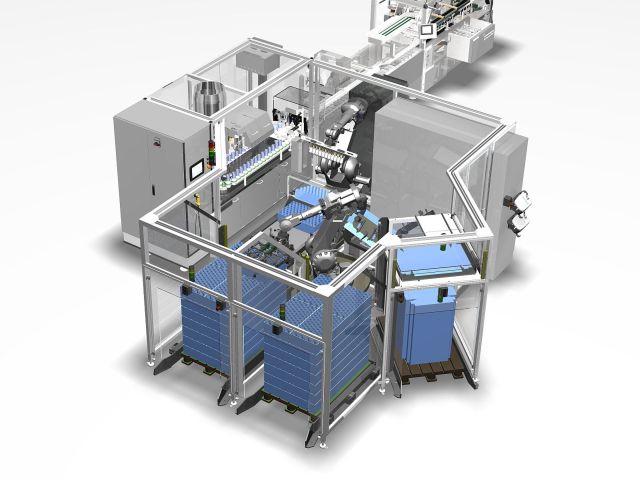

Depalletizer for tube boxes (tailor made)

Basic Info

  • TECHNOLOGY: De-Palletizing
  • INDUSTRY: Food, Personal Care, Home Care, Pharma & Healthcare
  • SEGMENT: Oils & Fats, Sauces & Condiments, Cosmetics, Deodorants, Men's Shaving, Other Home Care, Liquid Soaps, Toothpaste, Skin & Sun Care, OTC, Hair Care


​With this system you avoid the intense labour of feeding the tube loading robot with boxes, while at the same time getting rid off empty tube boxes from the filling machine. The robot cell picks up filled boxes and drops on a conveyor for use in the filling machine. The lid is removed. Empty boxes slides out from the tube filling machine on a lower level, and after unfolding them, the robot places a nice stack on a pallet.

Detailed Info

Machine depth (mm)5500
Machine height (mm)2300
Machine length (mm)5500
Machine weight (kg)800
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Operating modeIntermittent
Packaging range
Max pack height (mm)250
Min pack height (mm)85
Max pack length (mm)600
Min pack length (mm)400
Max pack width (mm)600
Min pack width (mm)400
Packaging features
Packaging closingSealing
Packaging materialCard board
Packaging TypePlastic in paperboard
Value proposition
Value propositionFlexibility
