NP 3002

Cartoning machine for tube applications up to 300 ppm

Basic Info

TECHNOLOGY: Cartoning & Box Filling
INDUSTRY: Home Care, Personal Care, Food, Chemicals
SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Other Food, Spreads, Other Chemicals

AFTER SALES SERVICE

Description

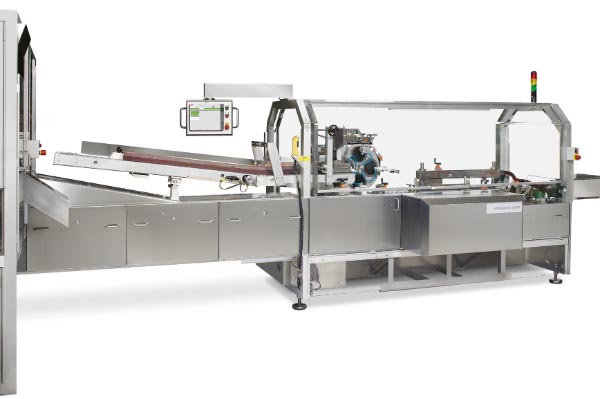

NP 3002 cartoning machine is continuously working at speeds up to 300 units per minute to match the output of a 300 ppm tube filler. The tubes are transferred by a Pick & Place unit from the tube filler to the cartoning machine, providing maximum control and security for the tube resulting in higher efficiency and perfect tubes. You may choose to have leaflets inserted into the carton.

Detailed Info

Footprint: Machine depth (mm)1840; Machine height (mm)1750; Machine length (mm)5300; Machine weight (kg)5800

Regulatory requirements: Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E; Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE

Other technical features: Insertion modeEnd Load/Side Load

Performance: Operating modeContinuous; Product changeoverYes

More Information: Other infoContinuously working up to 300 units per min. The pick & place transfers the tubes.

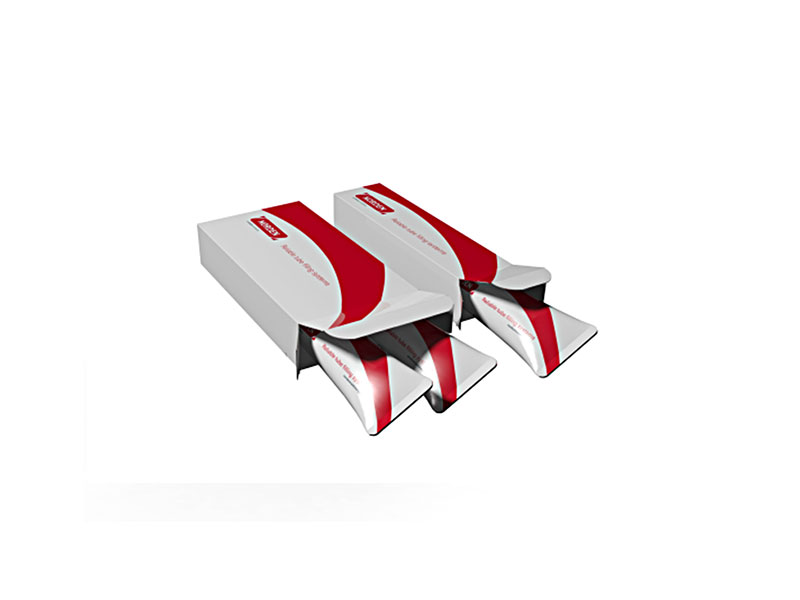

Packaging range: Max pack height (mm)72; Min pack height (mm)15; Max pack length (mm)210; Min pack length (mm)70; Max pack width (mm)72; Min pack width (mm)20

Packaging features: Packaging closingTuck; Packaging materialPaperboard; Packaging orientationHorizontal; Packaging TypePrefolded Carton; Packaging typeCarton box
