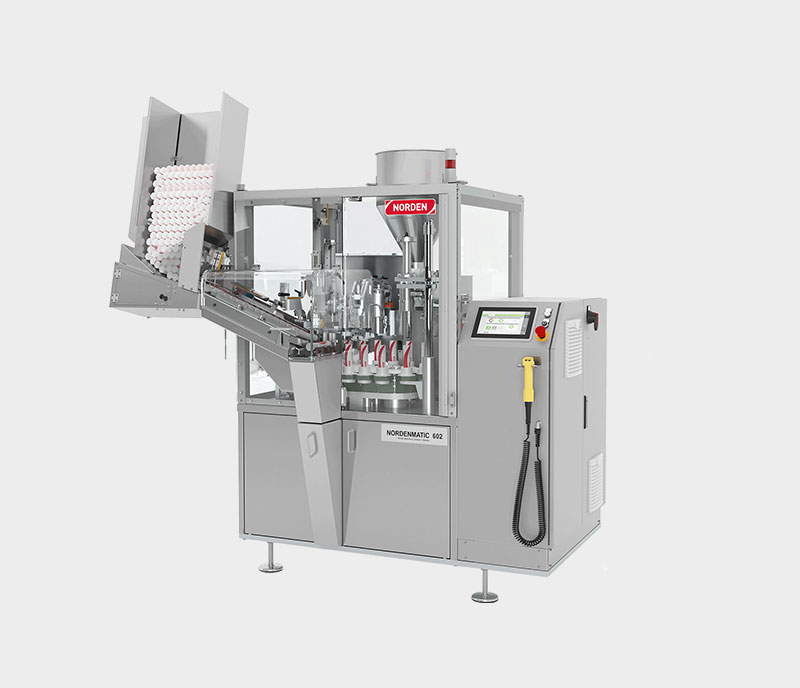

NM 602

Tube filling machine for plastic, laminate and aluminum tubes (60 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Food, Personal Care, Home Care, Chemicals, Pharma & Healthcare
  • SEGMENT: Oils & Fats, Sauces & Condiments, Spreads, Cosmetics, Deodorants, Men's Shaving, Other Home Care, Other Chemicals, Liquid Soaps, Toothpaste, Skin & Sun Care, OTC, Hair Care
CONTACT US
AFTER SALES SERVICE

Description

​The NM602 is controlled from a 10¨color touch screen panel - just like the larget Norden machines. An easy to use machine with fast changeovers, the NM602 is extremely compact but can still be equipped with many optional extras such as Design-A-Seal®, Scoop Seal®, Euroslot and corner trimming. The height of the sealing stations and the filling pump are individually adjustable.

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)850
Machine height (mm)2220
Machine length (mm)2240
Machine weight (kg)1700
Product range
Max filling volume (ml)300
Min filling volume (ml)1
Performance
Operating modeIntermittent
More Information
Other infoHot Air Sealing or metal folding. Design-A-Seal®, Scoop Seal®, Euroslot.
Packing range
Max pack diameter (mm)50
Min pack diameter (mm)10
Packaging range
Max pack length (mm)250
Min pack length (mm)50
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
Value proposition
Value propositionPerformance
