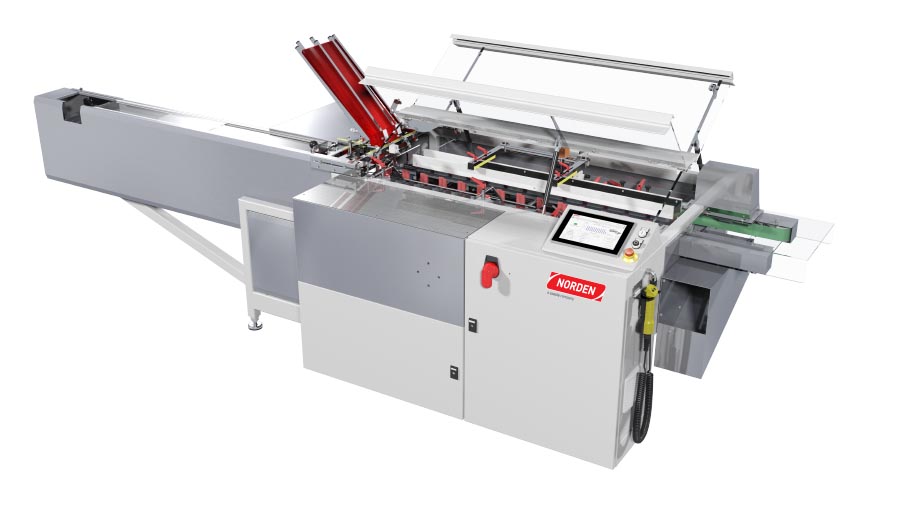

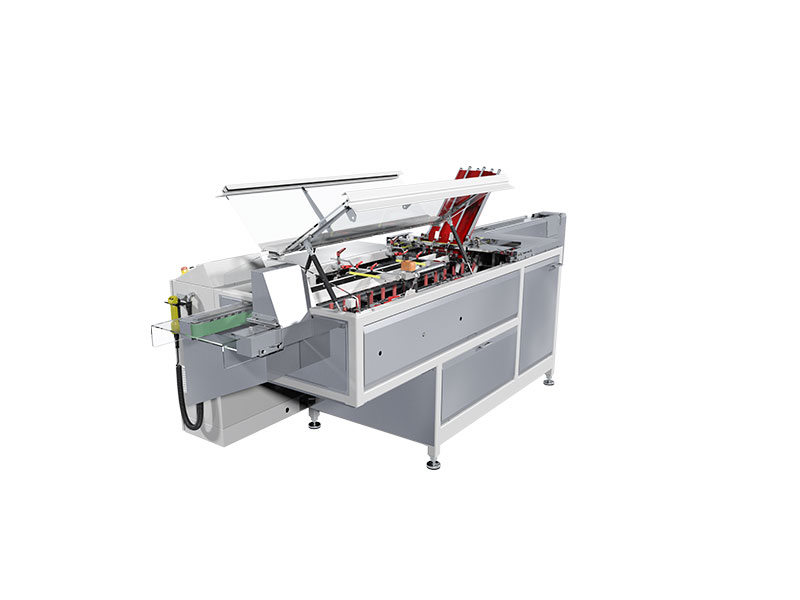

NP 702

Cartoning machine for tube applications up to 80 ppm

Basic Info

TECHNOLOGY: Cartoning & Box Filling
INDUSTRY: Home Care, Personal Care, Food, Chemicals
SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Other Food, Other Chemicals

AFTER SALES SERVICE

Description

Norden Cartoner NP702 is equipped with Norden EasyWare control system, providing operators with alarms and production statistics. Cartoning intermittent working mode for up to 80 units/minute, and continuous working mode for up to 140 units/minute. The cartoning machine is designed for flexible product sizes, offering easy size changeovers with predefined format recipes from Norden. You may choose to printed code marking of products, and add product safety features such as code reading and vision inspection for cartons and/or leaflets. NP702 can be equipped for production with fifth panel cartons, which is a neat way to display your product at the Supermarket.

Detailed Info

Footprint: Machine depth (mm)1050; Machine height (mm)1700; Machine length (mm)4550; Machine weight (kg)1200

Regulatory requirements: Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E; Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE

Other technical features: Insertion modeEnd Load/Side Load

Performance: Operating modeContinuous; Product changeoverYes

More Information: Other infoRun either intermittently or continuously to match the filler. Operate up to 140 tpm.

Packaging range: Max pack height (mm)70; Min pack height (mm)15; Max pack length (mm)210; Min pack length (mm)70; Max pack width (mm)70; Min pack width (mm)20

Packaging features: Packaging closingTuck; Packaging materialPaperboard; Packaging orientationHorizontal; Packaging TypePrefolded Carton; Packaging typeCarton box
