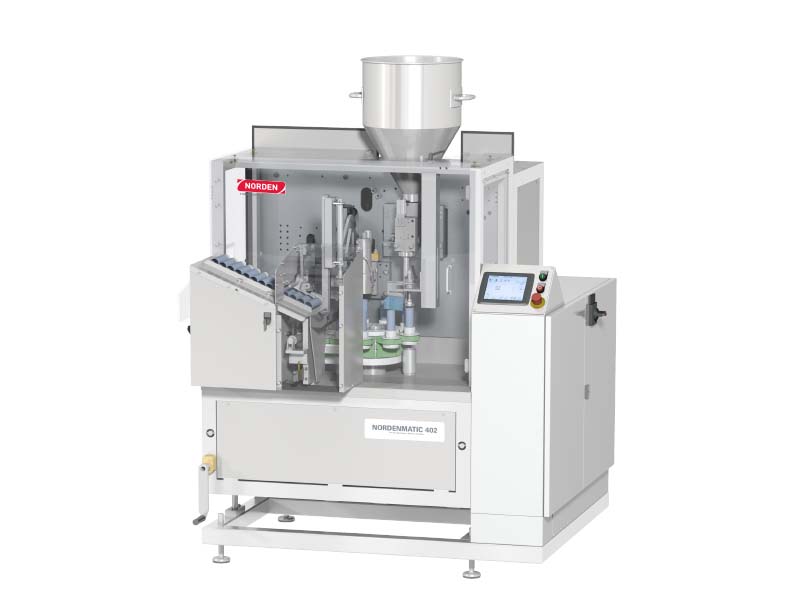

NM 402

Tube filling machine for plastic, laminate and aluminum tubes (40 ppm)

Basic Info

  • TECHNOLOGY: Tube Filling
  • INDUSTRY: Food, Personal Care, Home Care, Chemicals, Pharma & Healthcare
  • SEGMENT: Sauces & Condiments, Spreads, Cosmetics, Deodorants, Men's Shaving, Other Home Care, Other Chemicals, Liquid Soaps, Toothpaste, Skin & Sun Care, OTC, Hair Care

Description

​The full size opening of the front guard provides excellent access for maintenance and changeovers of this tube filling machine for required outputs of 40 tpm. The tube print orientation system guarantees first-rate accuracy of all tubes. NM402 has an operator friendly touch screen panel - logical and easy to read. The control system allows up to 30 pre-programmed format tables that,together with improved access for maintenance, reduce the changeover time to a minimum.

Detailed Info

Footprint
Machine depth (mm)1370
Machine height (mm)2030
Machine length (mm)1640
Machine weight (kg)1100
Product range
Max filling volume (ml)300
Min filling volume (ml)1
Performance
Operating modeIntermittent
More Information
Other infoEquipped with Hot Air Sealing or metal folding. Design-A-Seal®, Scoop Seal® available.
Packing range
Max pack diameter (mm)50
Min pack diameter (mm)10
Packaging range
Max pack length (mm)250
Min pack length (mm)50
Packaging features
Packaging materialAluminium - Laminated - Plastic
Packaging ShapeCylindrical - Oval
