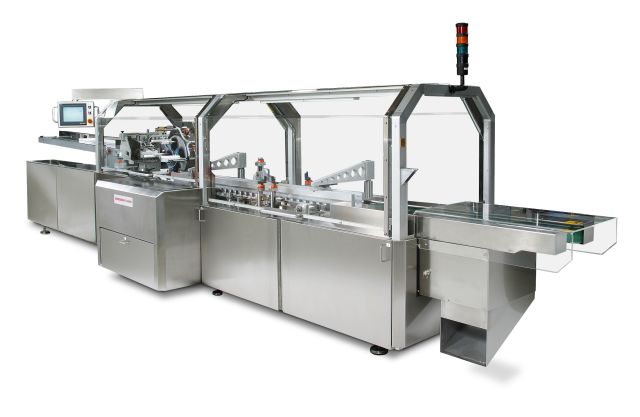

NP 5002

Cartoning machine for tube applications up to 500 ppm

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Home Care, Personal Care, Food, Chemicals
  • SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Spreads, Other Chemicals


​​NP 5002 cartoning machine is continuously working at speeds up to 500 units per minute to match the output of a 500 ppm tube filler. The tubes are transferred by a Pick & Place unit from the tube filler to the cartoning machine, providing maximum control and security for the tube resulting in higher efficiency and perfect tubes. You may choose to have leaflets inserted into the carton.

Detailed Info

Machine depth (mm)1840
Machine height (mm)1750
Machine length (mm)8300
Machine weight (kg)6100
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Other technical features
Insertion modeEnd Load/Side Load
Operating modeContinuous
Product changeoverYes
More Information
Other infoEquipped with three-inch pitch product chain, servo motors, digital counters.
Packaging range
Max pack height (mm)45
Min pack height (mm)22
Max pack length (mm)210
Min pack length (mm)100
Max pack width (mm)50
Min pack width (mm)25
Packaging features
Packaging closingTuck
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionPerformance
