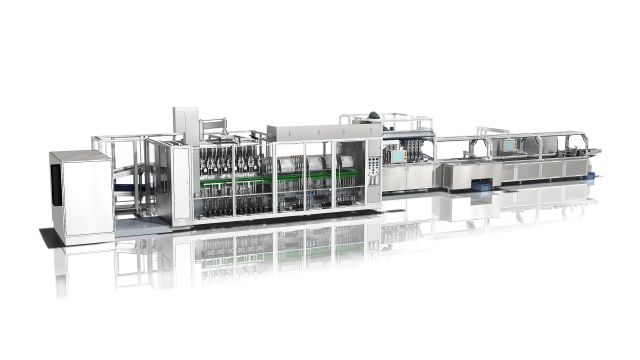

NC 1000

Cartoning machine for tube production up to 1000 ppm

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Personal Care, Food, Home Care
  • SEGMENT: Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Sauces & Condiments, Spreads, Other Home Care

Description

​Secure your production for today - and tomorrow! With Norden NF/NC-series you can roughly double production, while using the same floorspace. From the control system Norden Easyware II™, you can control the entire tube filling and cartoning line, including the robots, from one operator panel.On the world's fastest tube- and cartoning line you have easy access to workstations all around the line, allowing a clear overview for production, as well as easy access for cleaning and maintenance.


Detailed Info

Footprint
Machine depth (mm)2000
Machine height (mm)2200
Machine length (mm)11000
Machine weight (kg)7500
Regulatory requirements
Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E
Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE
Other technical features
Insertion modeEnd Load/Side Load
Performance
Operating modeContinuous
Product changeoverYes
More Information
Other infoCarton feeding 1000 cpm. Carton size: Min 15 x 20 x 100 mm, Max 45 x 50 x 240 mm.
Packaging range
Max pack height (mm)45
Min pack height (mm)15
Max pack length (mm)240
Min pack length (mm)100
Max pack width (mm)50
Min pack width (mm)20
Packaging features
Packaging closingTuck
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionBreakthrough innovation
