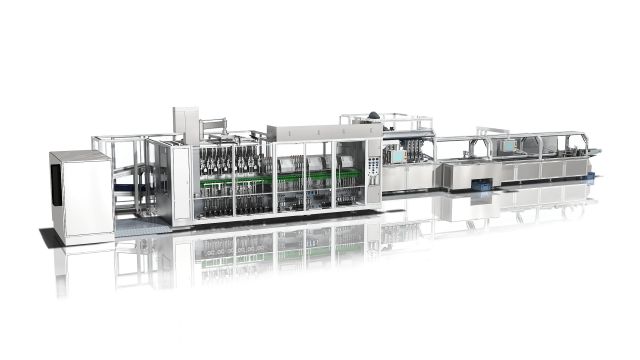

NC 850

Cartoning machine for tube production up to 850 ppm

Basic Info

TECHNOLOGY: Cartoning & Box Filling
INDUSTRY: Home Care, Personal Care, Food
SEGMENT: Other Home Care, Liquid Soaps, Cosmetics, Deodorants, Hair Care, Men's Shaving, Toothpaste, Skin & Sun Care, Oils & Fats, Sauces & Condiments, Spreads

Description

Secure your production for today - and tomorrow! With Norden NF/NC-series you can roughly double production, while using the same floorspace. From the control system Norden Easyware II™, you can control the entire tube filling and cartoning line, including the robots, from one operator panel.

Detailed Info

Footprint: Machine depth (mm)2000; Machine height (mm)2200; Machine length (mm)11000; Machine weight (kg)7500

Regulatory requirements: Food RegulationsCFR Title 21, 1935/2004/EC, 2023/2006/E; Safety RegulationsEN ISO 13732-1, 2009/105/EC, 94/9/EC, 97/23/EC, EN ISO 10218-2, EN ISO 11161, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, EN ISO 13850, EN ISO 13855, EN ISO 13857, EN ISO 14119, EN ISO 14122 -1 -2 -3 -4, EN ISO 4414, EN ISO 7010, EN 349, EN 415-4, EN 547-1 -2 -3, EN 614-1 -2, EN 619, EN 953, IEC 60204-1, IEC 60529, IEC 60825-1, IEC/TS 62046, ISO/TR 14121-2, 2014/30/UE, 2006/42/EC, 2014/35/UE

Other technical features: Insertion modeEnd Load/Side Load

Performance: Operating modeContinuous; Product changeoverYes

More Information: Other infoCarton feeding 850 cpm. Carton size: Min 15 x 20 x 100 mm, Max 45 x 50 x 240 mm.

Packaging range: Max pack height (mm)45; Min pack height (mm)15; Max pack length (mm)240; Min pack length (mm)100; Max pack width (mm)50; Min pack width (mm)20

Packaging features: Packaging closingTuck; Packaging materialPaperboard; Packaging orientationHorizontal; Packaging TypePrefolded Carton; Packaging typeCarton box
